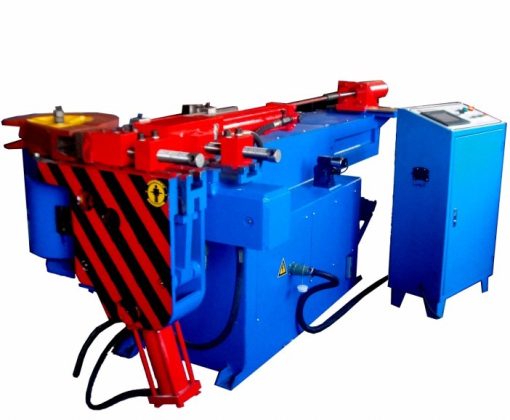

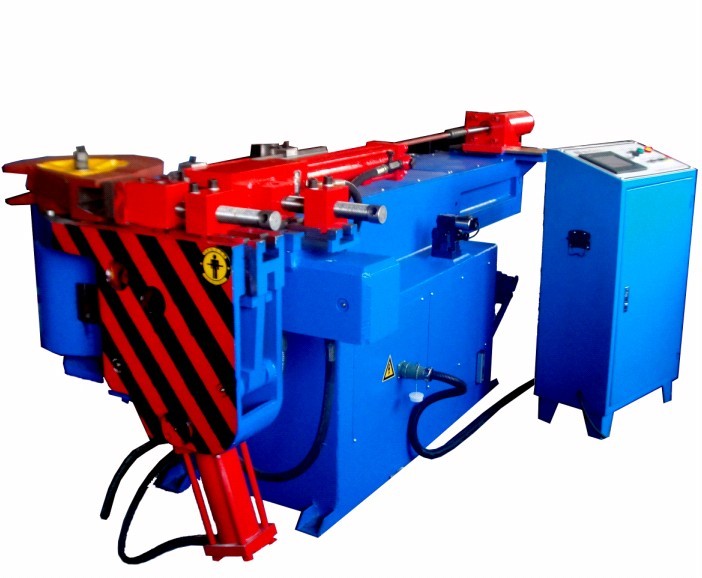

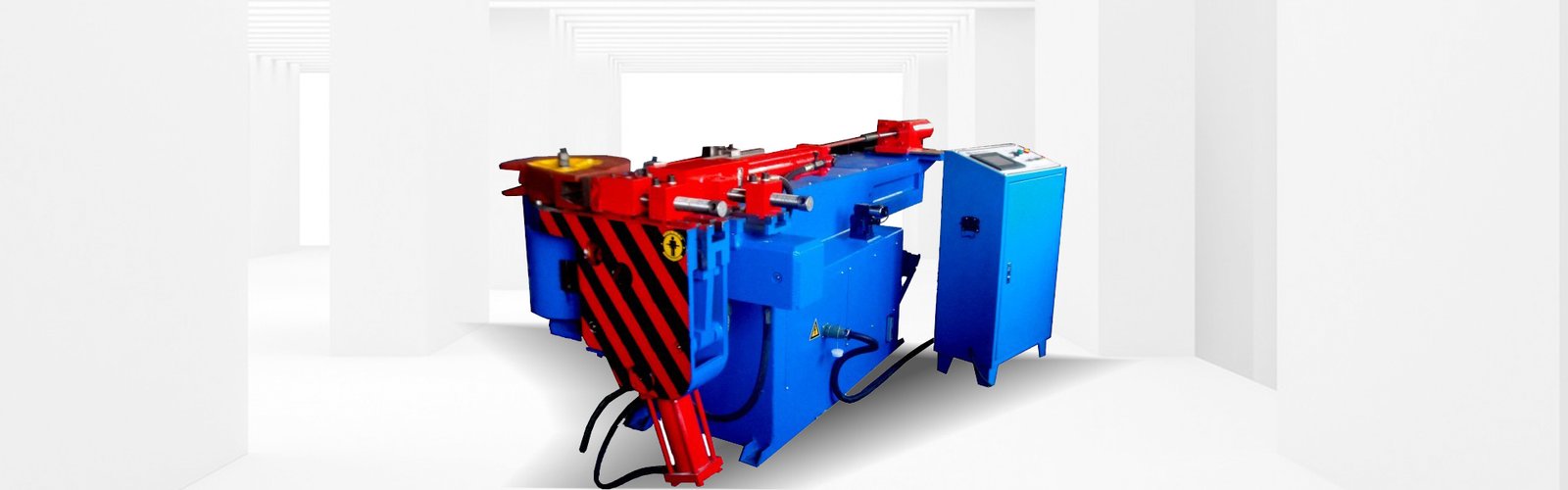

W27YPC-38

Pipe Bending Machine

NO.	ParameterName		Parameter	Unit	Remarks
1	Max torque		5000	N.m
2	Max bend pipe od*wt		Φ38*4	mm	QS=250MPA(equal to 20 steel quenching state)
3	Min bend pipe?od		Φ5	mm	Special dies can bend smaller outside diameter pipe
4	Min bend radius		R30	mm	Special clamping dies can bend smaller outside diameter pipe
5	Max bend radius		R200	mm
6	Max bend angle		195	°
7	Bend speed		0-5	r/min
8	Gyration speed		0-8	r/min	Double-cylinder driving, reset fast, domestic initiative
9	Numbers of bend angles		16	---	PLC provided by DELTA
10	Electric motor	Model	Y100M-4	---	Interpolation design
		Power	3	KW
		Rotating speed	1450	r/min
11	Oil pressure	Size	YB-D16		China Quality Gold Award
		Oil pressure	12	MPa
		Flowing speed	23	L /min
		Working?pressure	6	MPa
12	Size	Length	2000	mm
		Width	900	mm
		Height	1000	mm
13	Weight		about 1000	kg
